Vue systems installed at My Yard Live

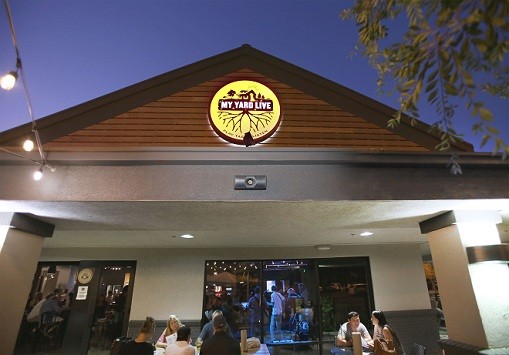

Located in San Marcos, California, My Yard Live is a venue that brings together elements of a community center, park, upscale eatery, beer garden, and live entertainment venue. Mixed indoor and outdoor spaces offer multiple options.

My Yard Live owners called on San Diego-based AV King to design and install audio solutions for each of the audience environments across the venue. With open ceilings, highly reflective concrete floors and more than 17,000 square-feet hosting different environments and audiences, My Yard Live presented some challenges for AV King owner Fady Hermez.

“In the bar and other adult-oriented areas, the music needs to crank, especially in the evening hours,” explains Hermez. “In the kid’s patio area, the sound is more ambient. The louder the audio, the more the kids shout, so we needed to roll it back quite a bit. Finally, there’s a PA for the main stage that can handle live acts or DJs.”

For the distributed systems, Hermez selected the Vue E-352 Nano speaker, which features a center-mounted beryllium high frequency dome tweeter flanked by a pair of 3.5-inch high-output cone transducers. For low frequency, Hermez opted for the ES-269 dual 6x9-inch subwoofer with patent-pending Active Compliance Management (ACM) technology.

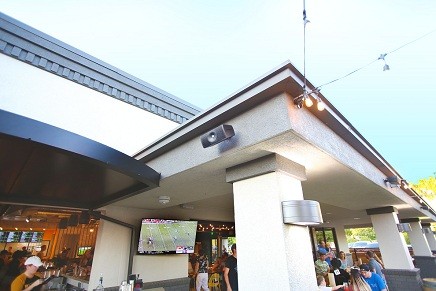

The subwoofers are mounted in the overhead truss while the ES-269 systems are mostly wall-mounted, just above head-height. A single subwoofer and two E-352 satellites are installed in each primary entertainment area, including the inside dining room, patio bar, and inside kids play area.

A total of four rack-mount VueDrive V-242 series systems engines provide power and processing for the E-Class systems, while a DBX ZonePro facilitates system-wide routing and delay control.

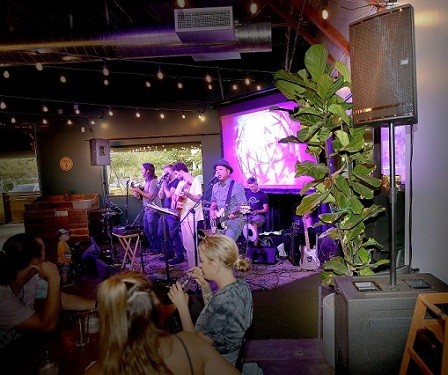

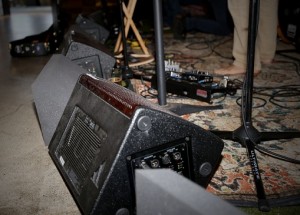

For the venue’s main stage Hermez selected a pair of Vue H-12 high definition two-way systems as mains, with HS-25 dual 15-inch ACM subwoofers handling the low end. Monitor duty comes courtesy of four Vue HM-108a compact monitoring system. All three H-Class systems on the main stage feature onboard VueDrive electronics, which deliver power and system access via the SystemVue software.

www.vueaudio.com
