Astera launches new HydraPanel product

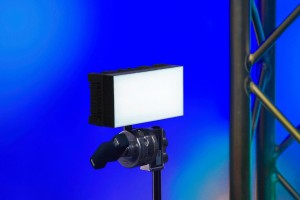

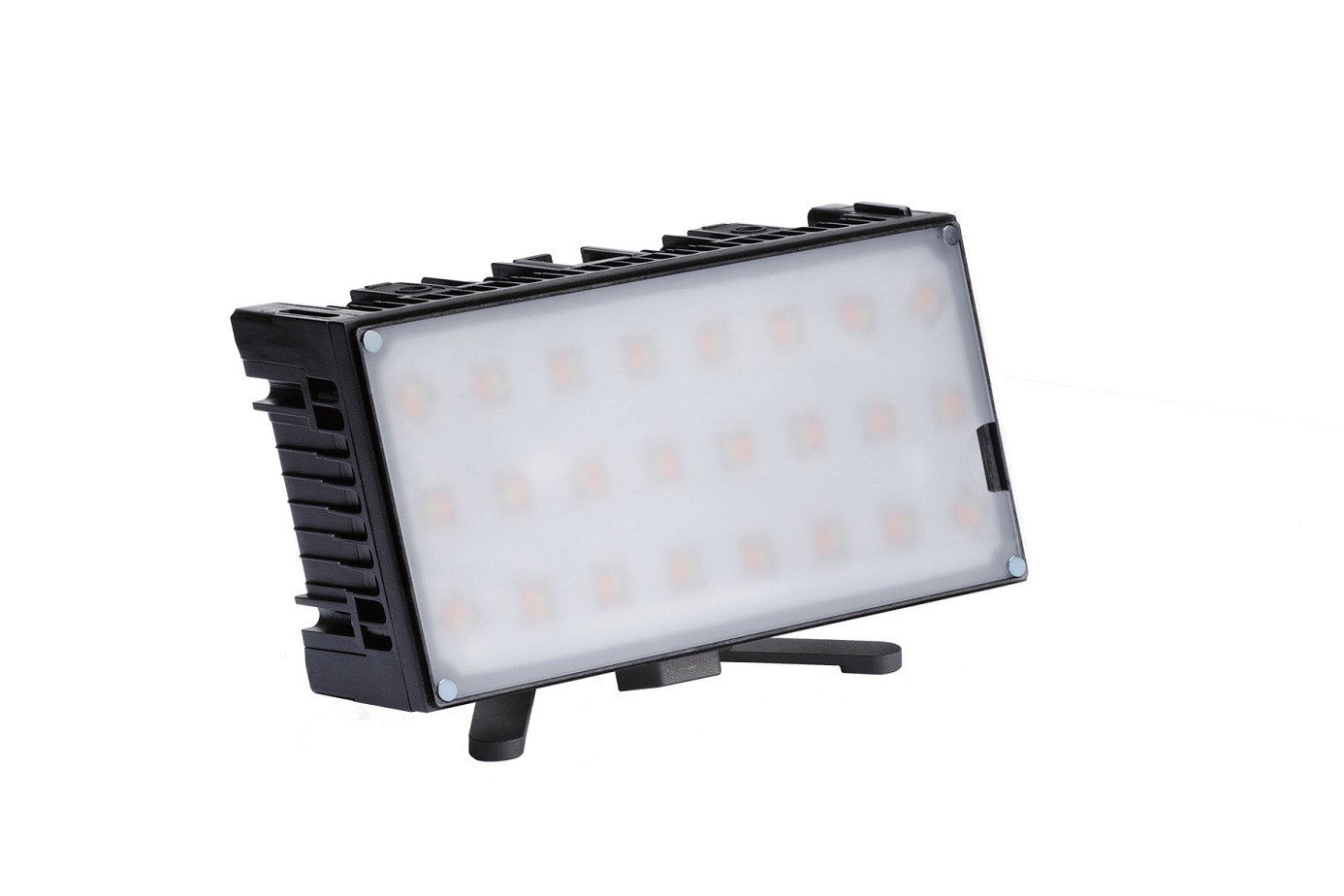

Astera launches its latest wireless LED lighting product, the HydraPanel, which features the company’s Titan LED engine. The six-pixel product weighs 600 g and has an inbuilt battery and wireless DMX module making it useable anywhere. It can also be run fully wired.

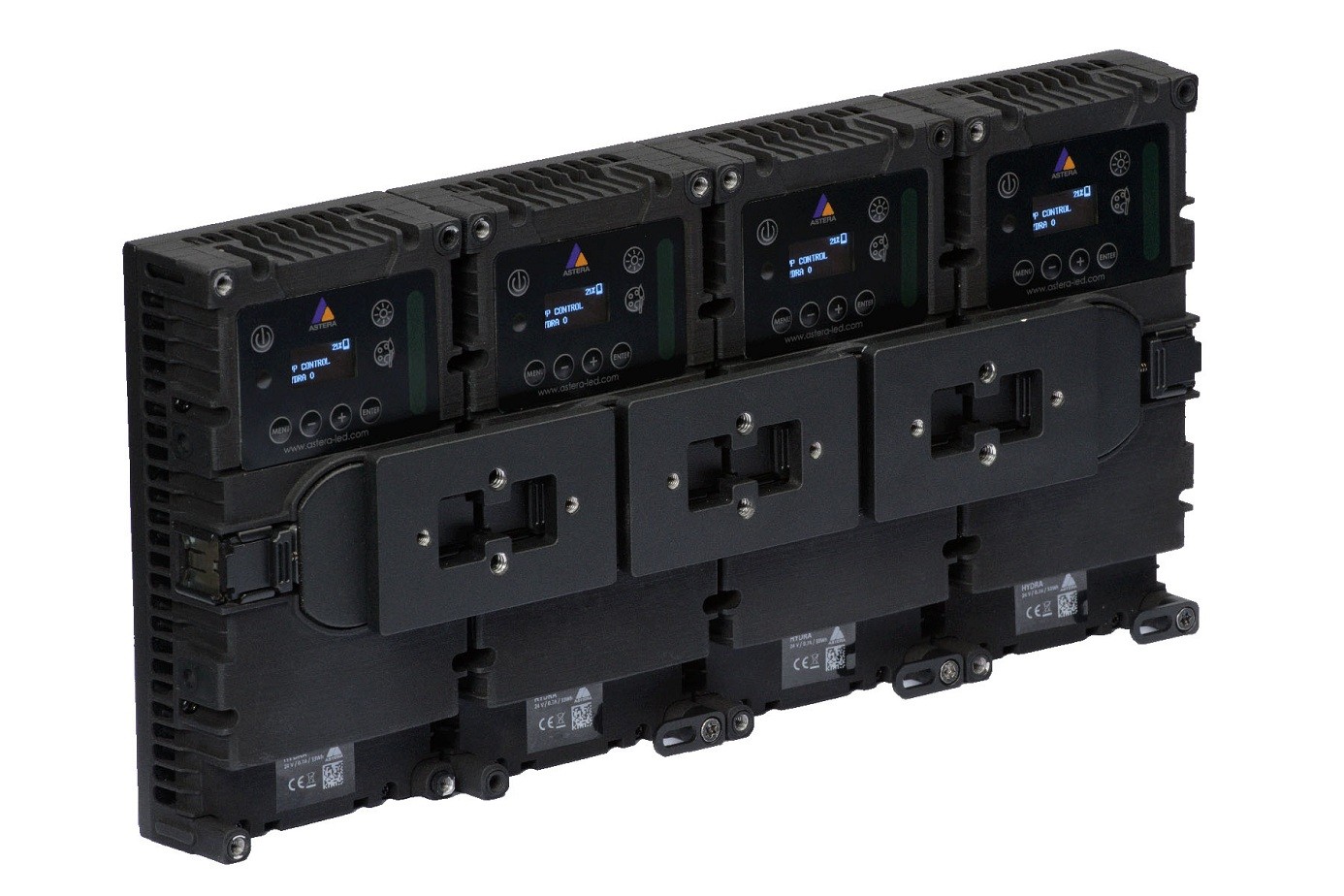

It is IP65 rated in both wired and wireless scenarios so it can be used outdoors or in damp or otherwise challenging atmospheric conditions. Each HydraPanel emits 1300 Lumens of light giving 515 Lux at 1 metre (without filter) and a high CRI and TLCI. Accessories include the ConnectorPlate which connects two HydraPanels together, and up to four panels can be joined using three ConnectorPlates to create a medium size panel.

Uses will include key for lighting people as well as illumination of more substantial areas such as stages, scenery, and buildings. Larger arrays of HydraPanels can be used as a low-resolution screen/video effect and as a back-of-camera fill. Like Astera’s PixelBrick, power and data are delivered via PowerBox 2 x 86 W devices, and for larger setups, eight HydraPanels can be connected to the PowerBox via Power/Data combination cables.

Once arrayed, IR communication between HydraPanels enable multiple units to be controlled from a single console or controller for continuity of parameters like colour, brightness, etc. The fixture’s display includes dedicated colour and brightness buttons for swift, accurate adjustment, and new TouchSliders for tweaking these settings.

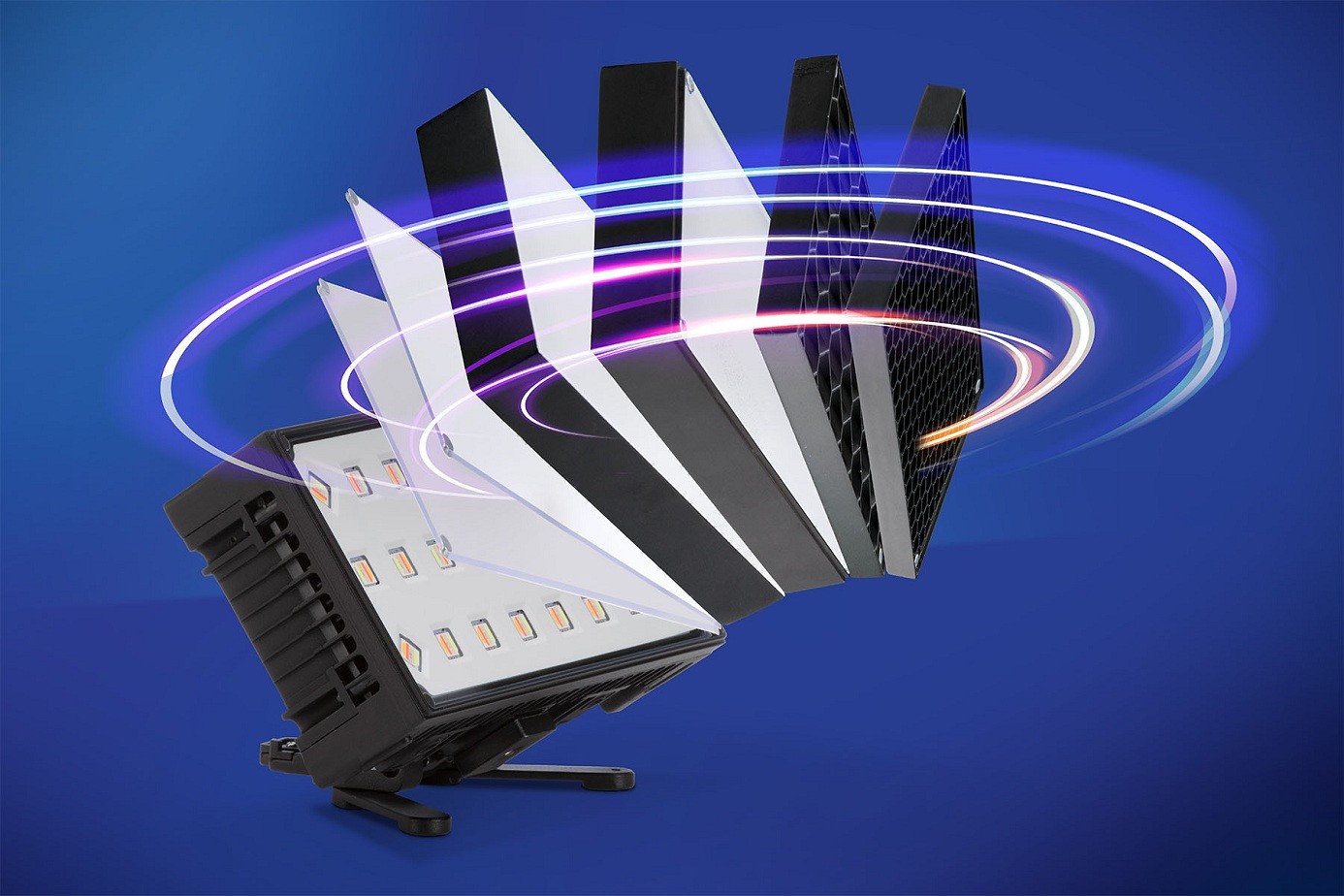

The back side of the fixture is magnetic and can be deployed without needing any other mounting accessories. The units look unobtrusive when ensconced as set ‘practicals’, and with scenic lighting and adaptability in mind, six beam modifiers are also available to adjust the HydraPanel’s native 110° x 100° beam.

These include DiffusorSheet 100 which gives a soft light and 100° beam angle without increasing its height. A SoftFrame 100 filter can be added to distance the filter from the HydraPanel unit, enhancing smoothness and creating shadows when mounted to a camera or on structures and stages.

The Intensifier 80 creates a narrower 80° beam for longer throw applications and for those close ups when a light boost is needed. Intensifier 80 has four magnets allowing two EggCrates to be attached - EggCrate 60 which eliminates light spill around the beam and avoids glare, resulting in a 60° beam, or EggCrate 40 which does the same, producing a 40° beam.

GelHolder secures a filter gel in place, and the beam modifiers can be attached via the four small magnets on the top of the HydraPanel. A FlexBase accessory can be added via the Cold Shoe and utilised as a floor stand, and once the FlexBase is fixed in place, the HydraPanel can be titled via a hinge and four threads facilitate numerous other installation methods including the attachment of hangers.

Specially designed cases for one HydraPanel are available from Astera complete with Titan Tube PSU and all six beam shaping modifiers plus a FlexBase, ConnectorPlate and BabyPin double-ended spigot, while a 4-unit charging case comes with a Hyperion Tube PSU and the lights are recharged through contacts. The streamlined case design accommodates all six beam shapers plus FlexBase, ConnectorPlate and BabyPin accessories for all four lights. A DOP Choice SnapBag is also available from Astera for the HydraPanel.

(Photos: Astera)

www.astera-led.com
