Elation Fuze Wash 500 LED Fresnel moving head shipping now

Elation Professional expands its Fuze Series with the full-color-spectrum Fuze Wash 500, a compact LED Fresnel moving head fixture with zoom designed for theater, television, events and a wide array of other precision lighting applications where a soft field of light is required.

The Fuze Wash 500 offers a 92+ CRI engine that utilizes a 500 W 5-color LED array of red, green, blue, mint, and amber sources, the same color system found in the Fuze Profile/Spot and Fuze Max Profile/Spot. The RGBMA engine, calibrated at a native color temperature of 6500 Kelvin, emits diffused saturates and soft-field pastels, including tunable white light. The LEDs ensure accurate color reproduction both to the eye and to the camera while delivering an output of up to 17,000 lumens.

The unit can adjust for light that shifts away from pure white towards green or magenta through a green/magenta shift adjustment and a virtual gel library. Virtual color correction from 2400 K-8500 K plus CMY emulation give designers access to an LED color array including mixed whites.

Capable of matching the white balance for camera, users can shift the color temperature without the use of plus/minus green gels and filters. The unit is optimized for broadcast environments with an LED refresh rate that is DMX adjustable so there is no flickering when used with high-speed cameras.

Automated zoom control allows for adjustment of the beam size from 10° to 45° for narrow beams to wide washes. Optional motorized barndoors plus an optional indexable ovalizer lens are available for additional beam control. Dimming of the LED engine is stepless with variable 16-bit dimming curve modes available. A high-speed electronic shutter and strobe can be engaged.

The Fuze Wash 500 is multi-channel DMX controllable with full RDM, Art-Net, sACN and Elation E-Fly wireless support. A host of connection features come standard like locking 5-pin XLR In/Out, IP65 locking power In/Out, and locking RJ45 Ethernet In/Out. Operation is via a 4-button touch control panel with full-color 180° reversible LCD menu display. A USB connection is also included for firmware updates.

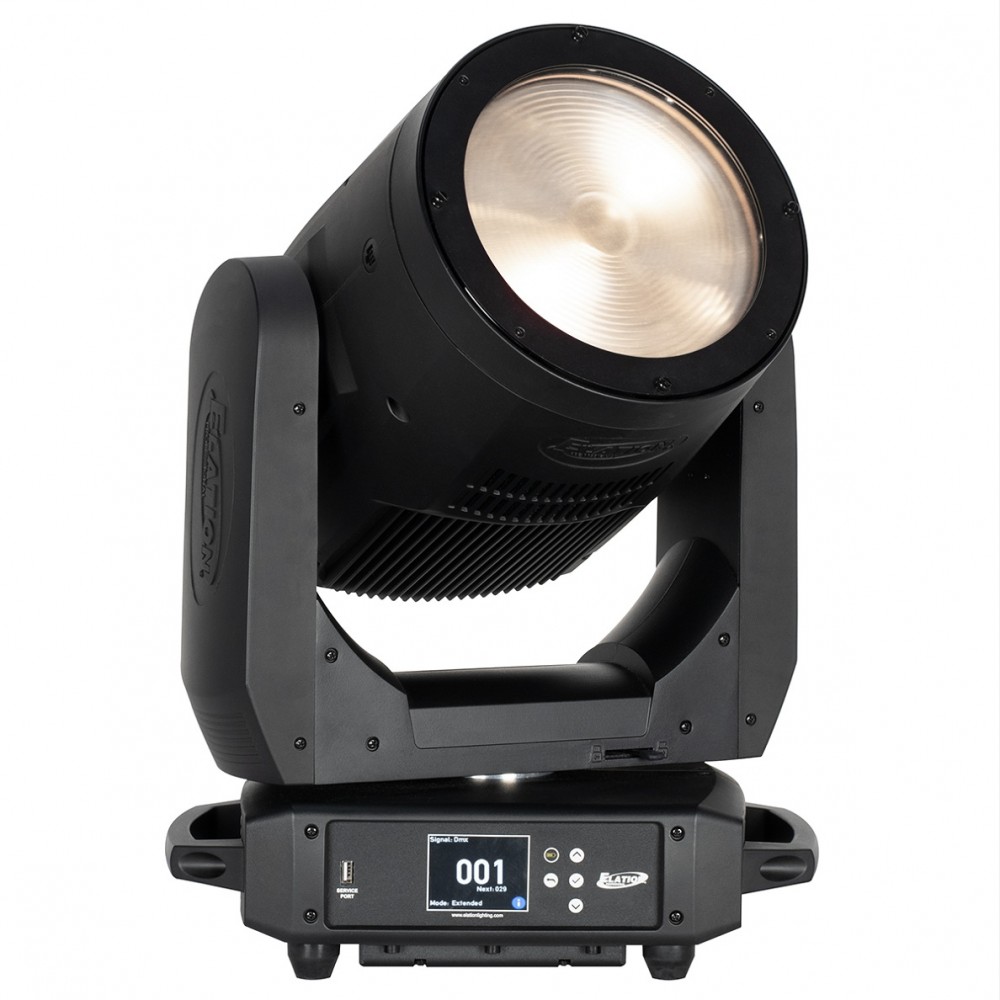

(Photo: Elation Professional)

www.elationlighting.com
